Description

SC(B) series epoxy resin dry-type transformer is flame-retardant, fire-proof, explosion-proof, maintenance free, pollution-free, small in size, because of the winding is encapsulated, and can be directly installed in the load center. It is equipped with intelligent temperature controller, which has the functions of fault alarm, overtemperature alarm, overtemperature trip and black box. It is connected with the computer through RS485 serial interface and can be monitored centrally and control.

1、Usage:   Dry type transformers are widely used in distribution rooms of residential buildings, large shopping malls, office buildings, and large factories etc..

2、Rated voltage:  The input voltage is 15KV, 20KV, 22KV,25kV etc. The output voltage is 400V 415V 420V 440V etc.

3、Rated capacity:25kVA 50kVA 80kVA 100kVA 125kVA 160kVA 200kVA 250kVA 315kVA 400kVA 500kVA 630kVA 800kVA 1000kVA 1250kVA 1600kVA 2000kVA 2000kVA 2500kVA 3150kVA 4000kVA etc..

4、Customization: medium voltage transformer or high voltage transformercan be manufactured according to the requirement of client.

Certification&Standards

1、Certification: ISO9001、CE、UL、CB、KEMA

2、Standards:

IEC60076-1:2011 Power transformers - Part 1: General

IEC60076-11:2018 Power transformers - Part 11: Dry-type transformers

GB/T 1094.1-2013 Power transformers - Part 1: General

GB/T 1094.11-2007 Power transformers - Part 11: Dry-type transformers

GB/T 10228-2015 Specification and technical requirements for dry-type power transformers

Model Meaning

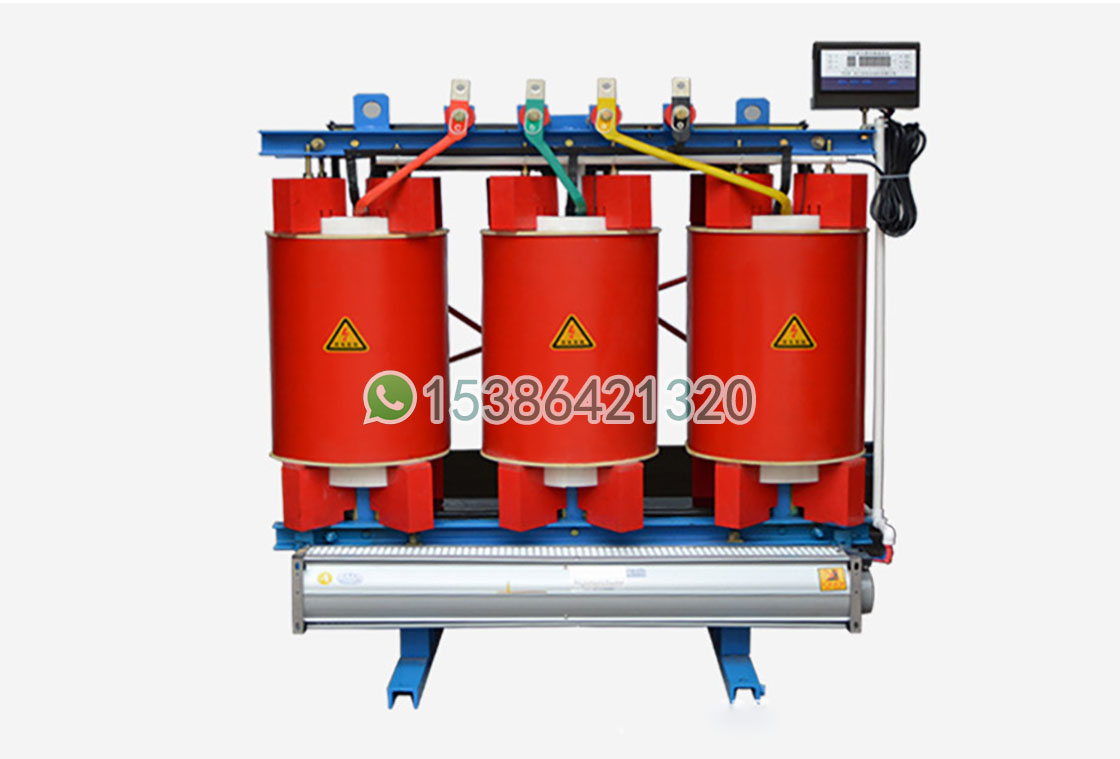

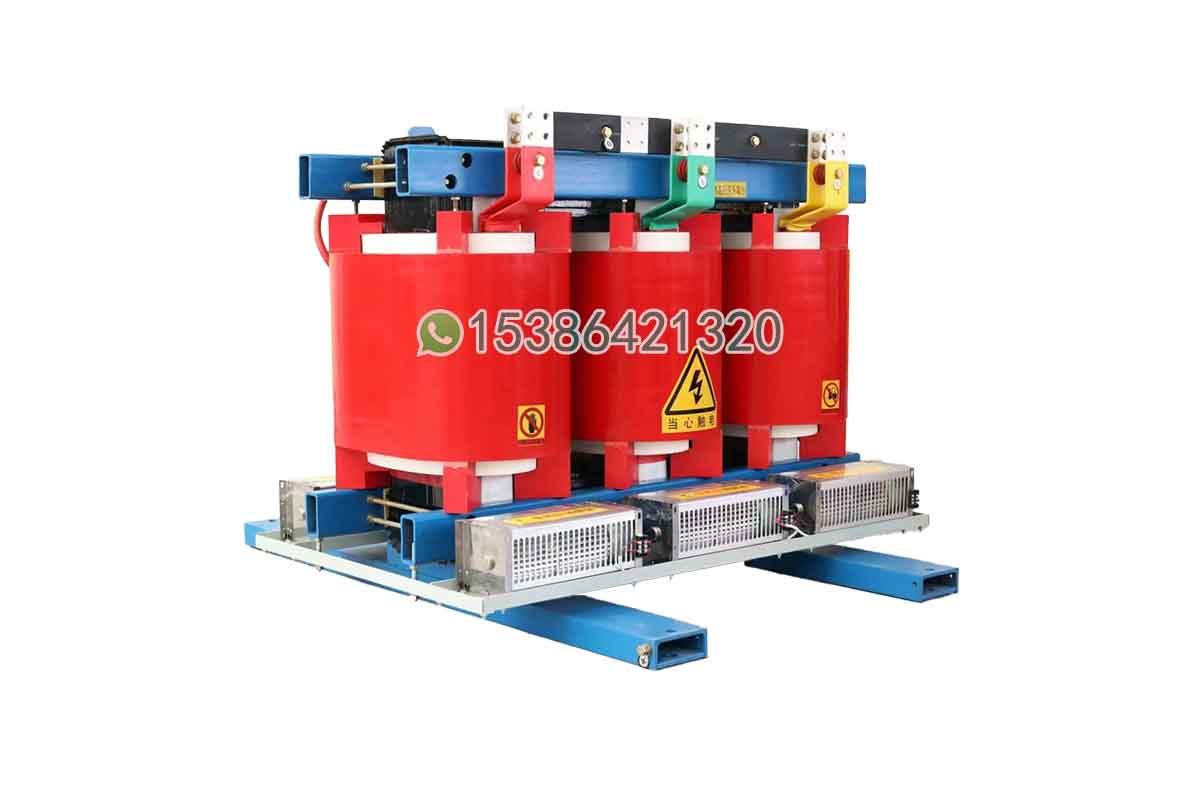

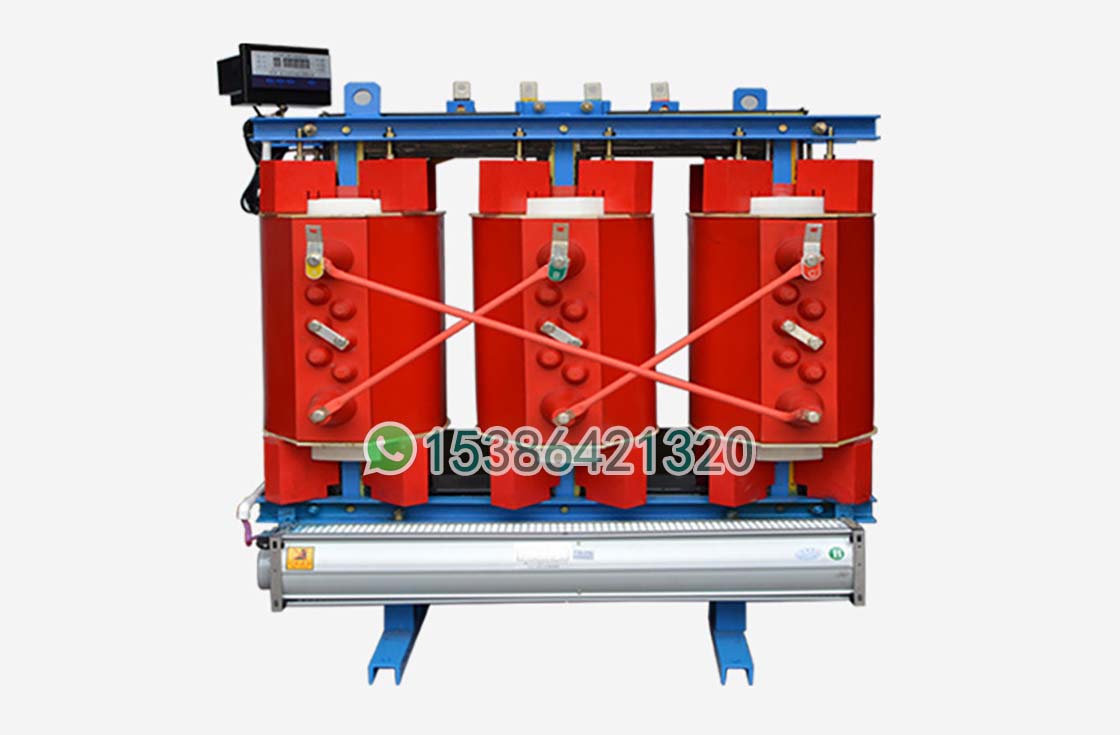

 Product details

Product characteristics

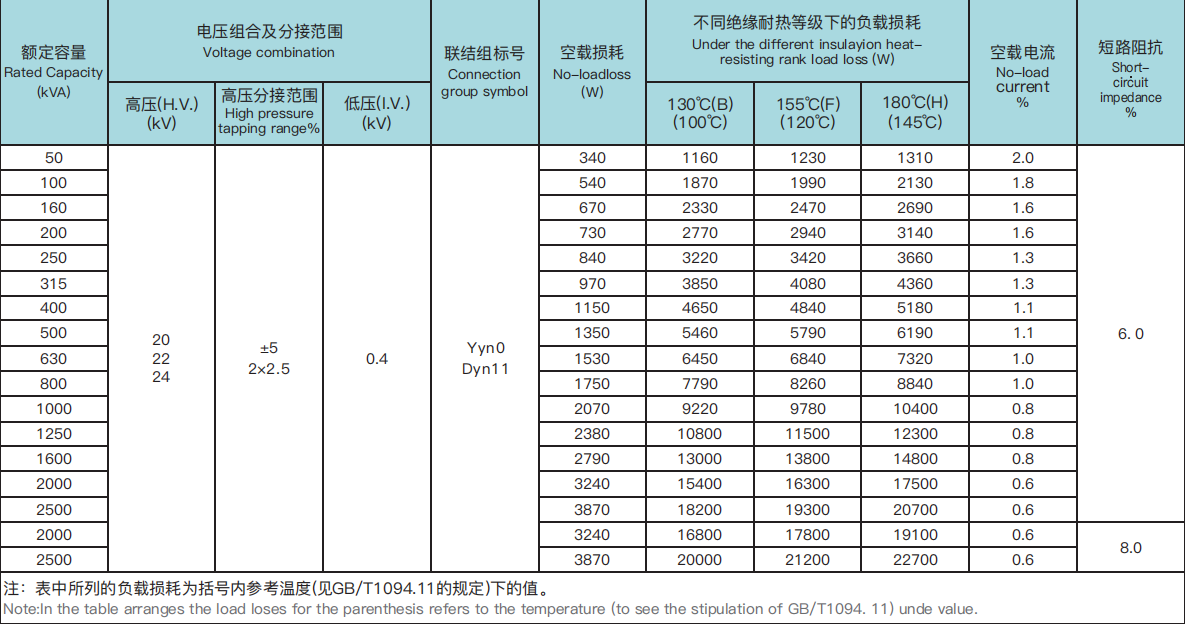

   20kV the level SC(B)10 series no-excitation dry type distribution transformer performance parameter

Payment and transportation

Transformer ordering instructions

- Main parameters of transformer （voltage, capacity, loss and other main parameters）

- Transformer use environment （altitude, temperature, humidity, location, indoor，outdooretc.）

- Other customized requirements （tap switch, color, oil pillow, etc.）

- Minimum order quantity: 1 set, global delivery within 7 days

- The normal delivery period is 30 days, fast delivery worldwide
