Description

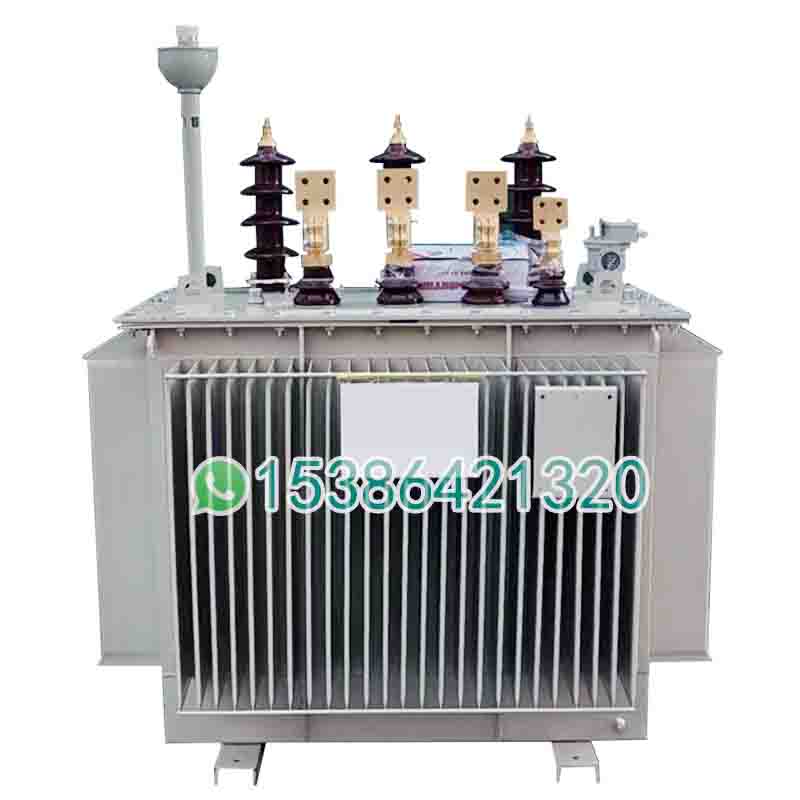

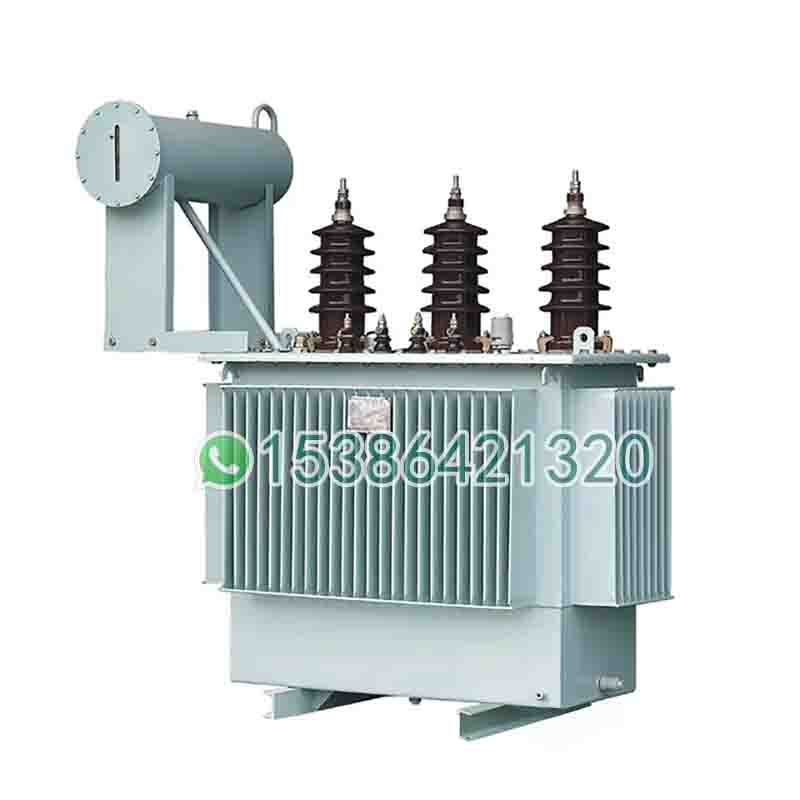

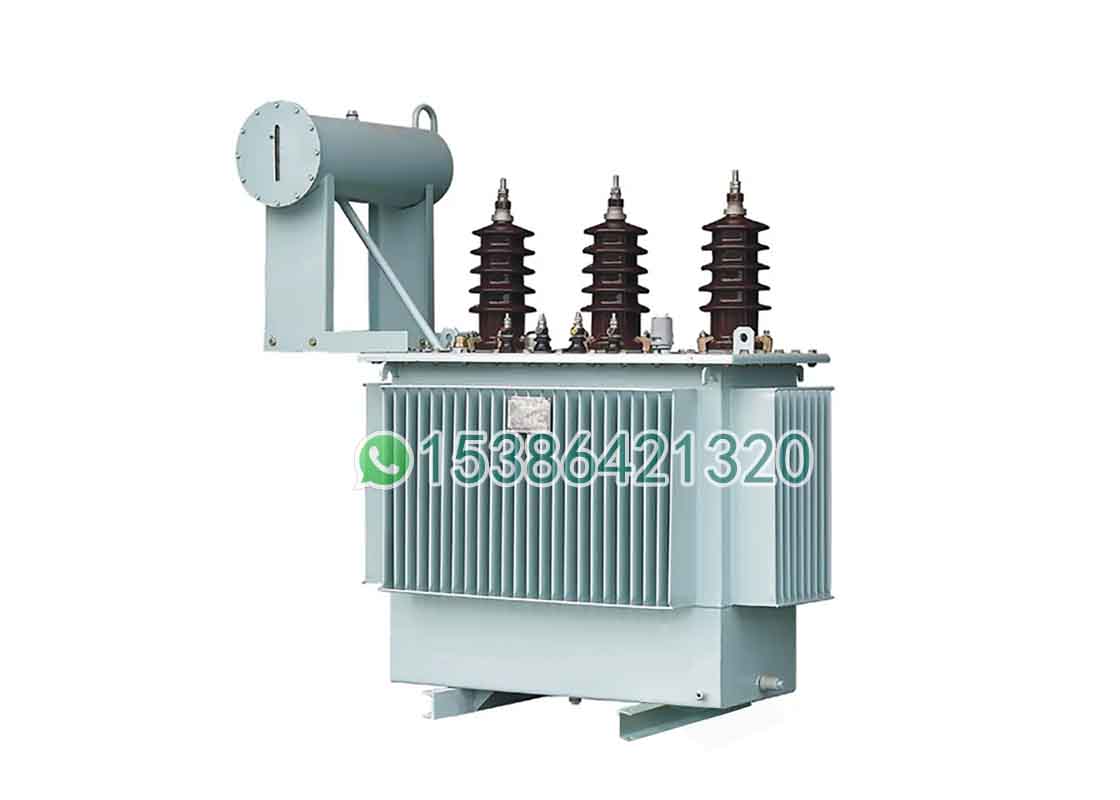

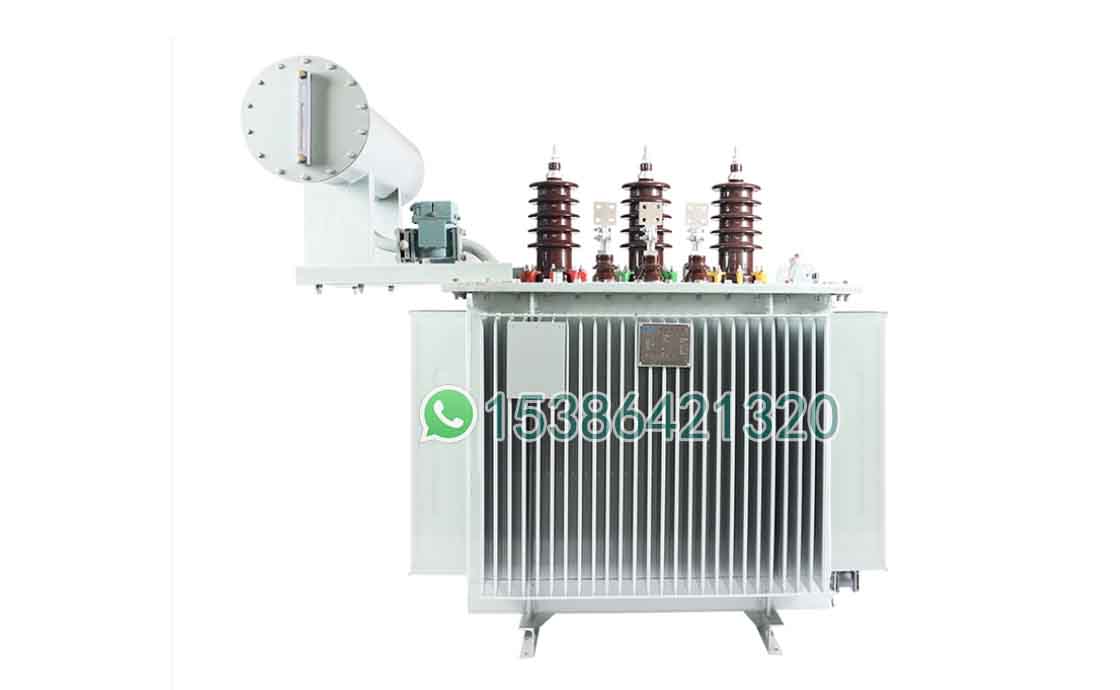

1、Performance: 30-38.5kV oil immersed power transformers adopt full oil filled and sealed corrugated oil tank，which have good moisture resistance and heat dissipation performance.
Usage:Oil immersed distribution transformers can be installed indoors and outdoors, and are widely used in industrial and mining enterprises, such as industrial park， engineering construction ，thermal power plants, hydropower stations etc..
2、Rated voltage: The input voltage is 30KV, 33KV, 35KV,34.5kV,38.5kV etc. The output voltage is 400V 415V 420V 440V etc.
3、Rated capacity:25kVA 50kVA 80kVA 100kVA 125kVA 160kVA 200kVA 250kVA 315kVA 400kVA 500kVA 630kVA 800kVA 1000kVA 1250kVA 1600kVA 2000kVA 2000kVA 2500kVA 3150kVA 4000kVA etc..
4、Customization: medium voltage transformer or high voltage transformercan be manufactured according to the requirement of client.
Certification&Standards
1、Certification: ISO9001、CE、UL、CB、KEMA
2、Standards:
IEC60076- Part 1；Part 2；Part 3；Part 5；Part 10 Power transformers；
GB/T1094- Part 1；Part 2；Part 3；Part 5；Part 10 Power transformers；
GB/T 15164 Oil-immersed power transformer load guide
GB/T 6451 Three-phase oil-immersed power transformer technical parameters and requirements
Model Meaning
Product details
Product characteristics
Capacity | H.V(kv) | Tap range | L.V(kv) | Connection symbol | NO-load | Load loss（W） | NO-load current | Short | |
50 kva | 30 33 38.5 | ±5% | 0.4 |
| 210 | 1270/1210 | 2.0 | 6.5 | |
100 kva | 290 | 2120/2020 | 1.8 | 6.5 | |||||
150 kva | 340 | 2500/2380 | 1.7 | 6.5 | |||||
160 kva | 360 | 2970/2380 | 1.6 | 6.5 | |||||
200 kva | 430 | 3500/3330 | 1.5 | 6.5 | |||||
250 kva | 510 | 4160/3960 | 1.4 | 6.5 | |||||
300 kva | 610 | 5010/4770 | 1.4 | 6.5 | |||||
400 kva | 730 | 5050/5760 | 1.3 | 6.5 | |||||
500 kva | 860 | 7280/6930 | 1.2 | 6.5 | |||||
600 kva | 1040 | 8280 | 1.1 | 6.5 | |||||
750 kva | 1230 | 9900 | 1.0 | 6.5 | |||||
1000 kva | 1440 | 12150 | 1.0 | 6.5 | |||||
1250 kva | 1760 | 14670 | 0.9 | 6.5 | |||||
1500 kva | 2120 | 17550 | 0.8 | 6.5 | |||||
2000 kva | 2490 | 20740 | 0.8 | 6.5 | |||||
2500 kva | 2950 | 24420 | 0.8 | 6.5 | |||||
3000 kva | 3510 | 29050 | 0.7 | 6.5 | |||||
4000 kva | 4200 | 34940 | 0.7 | 6.5 | |||||
5000 kva | 4960 | 41160 | 0.7 | 6.5 |
Workshop inventory
Payment and transportation
Transformer ordering instructions
- Main parameters of transformer （voltage, capacity, loss and other main parameters）
- Transformer use environment （altitude, temperature, humidity, location, indoor，outdooretc.）
- Other customized requirements （tap switch, color, oil pillow, etc.）
- Minimum order quantity: 1 set, global delivery within 7 days
- The normal delivery period is 30 days, fast delivery worldwide
