Description

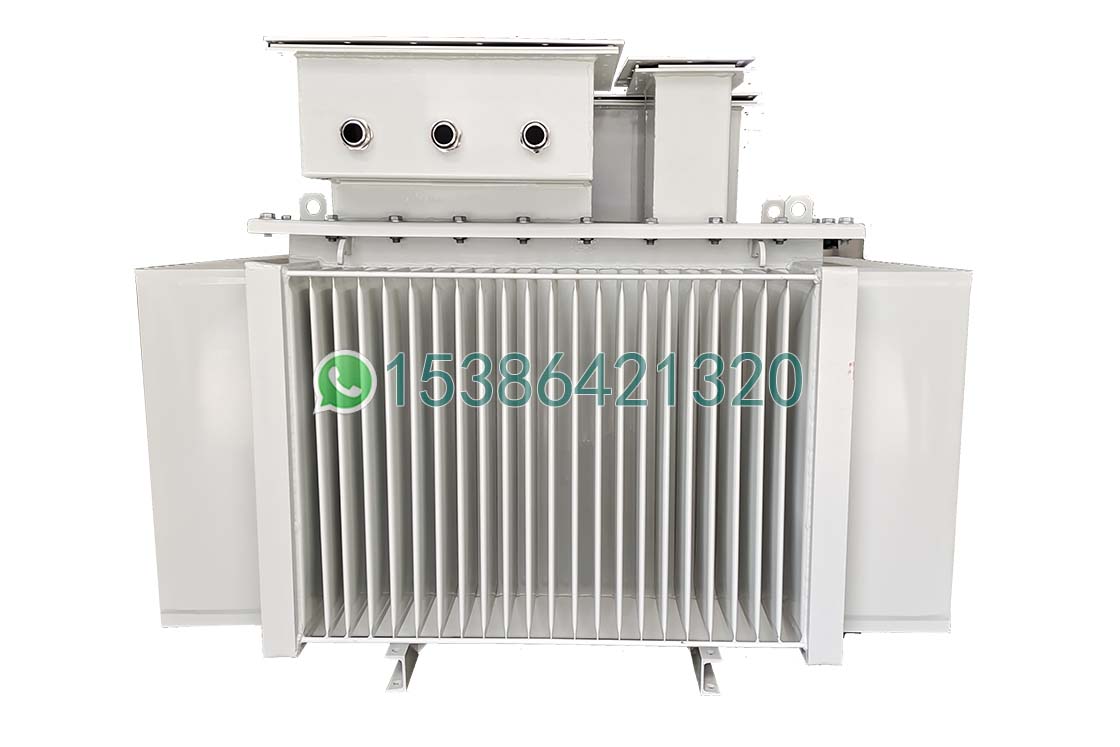

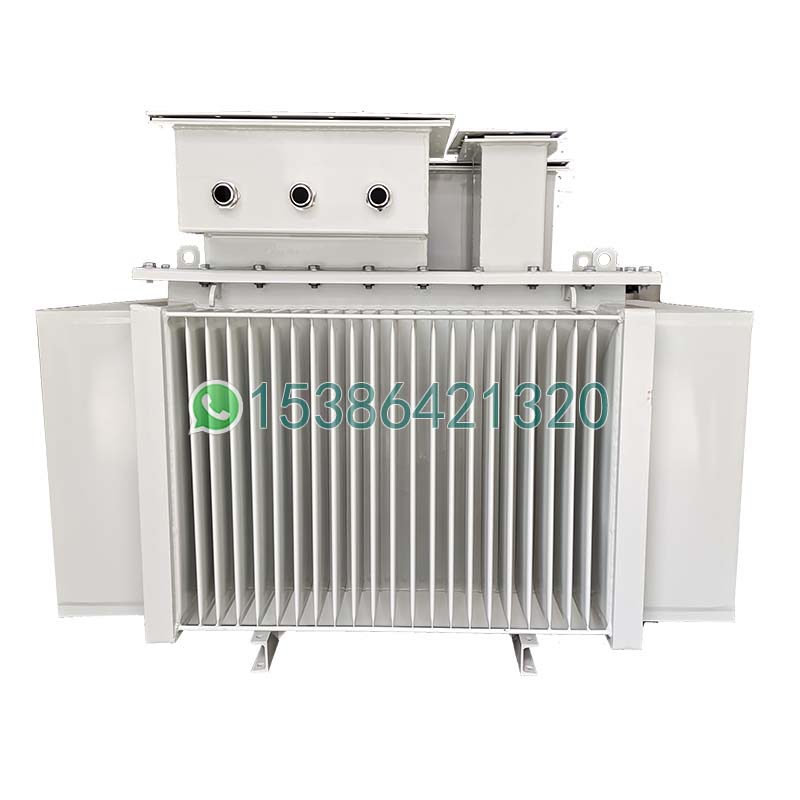

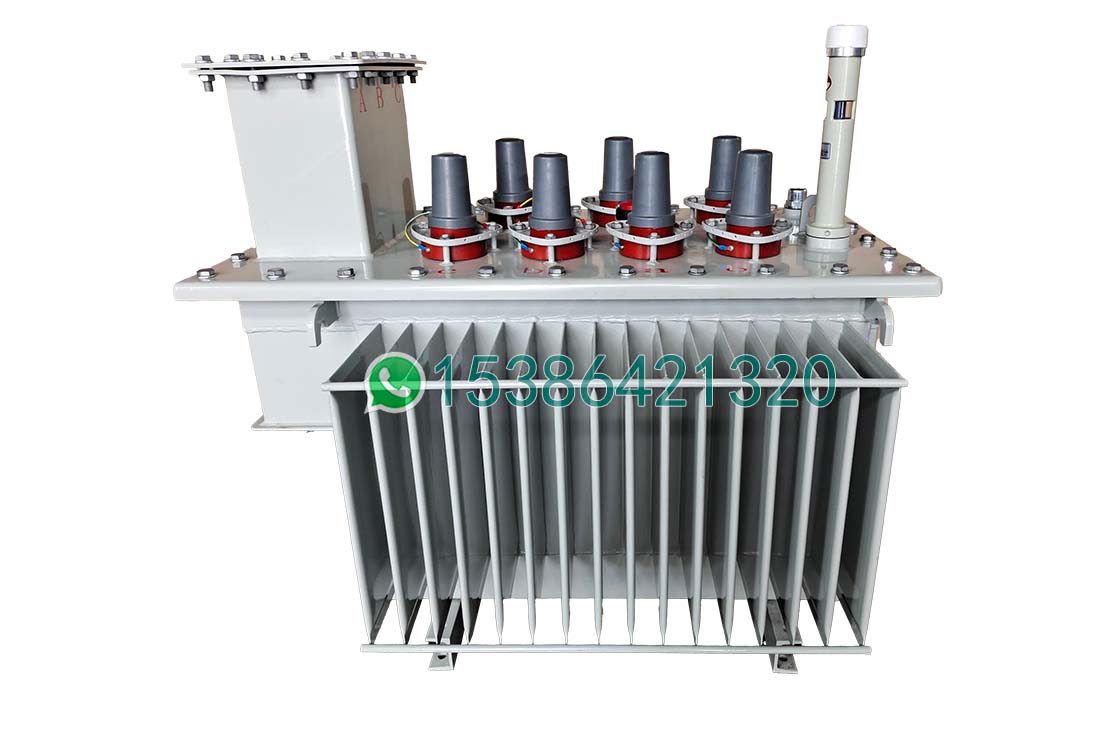

The high and low voltage inlet and outlet joints of underground transformers adopt waterproof, fully sealed, fully insulated, and fully shielded wiring methods. The high-voltage side of the underground transformer is protected by a fuse. With a protection level of IP68, it can be directly submerged in water or buried in underground tunnels. Transformers can be widely used in densely populated central urban areas and streets, highways, bridges, tunnels, parking lots, airports, ports, tourist attractions, and other lighting systems, especially suitable for users who have strict requirements for height and floor area. The casing of the buried box transformer can be matched with stainless steel or similar materials.

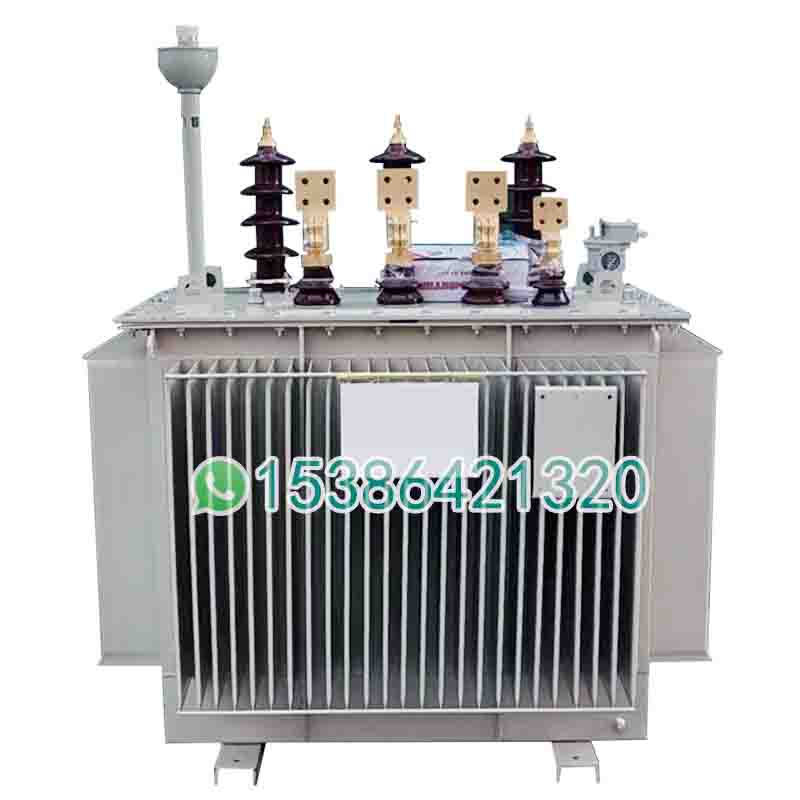

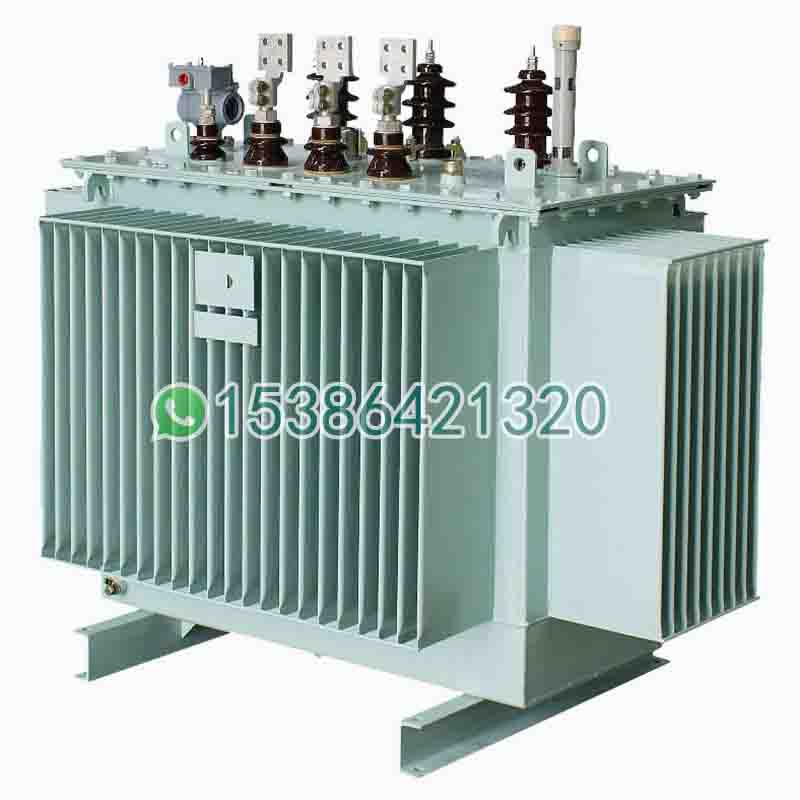

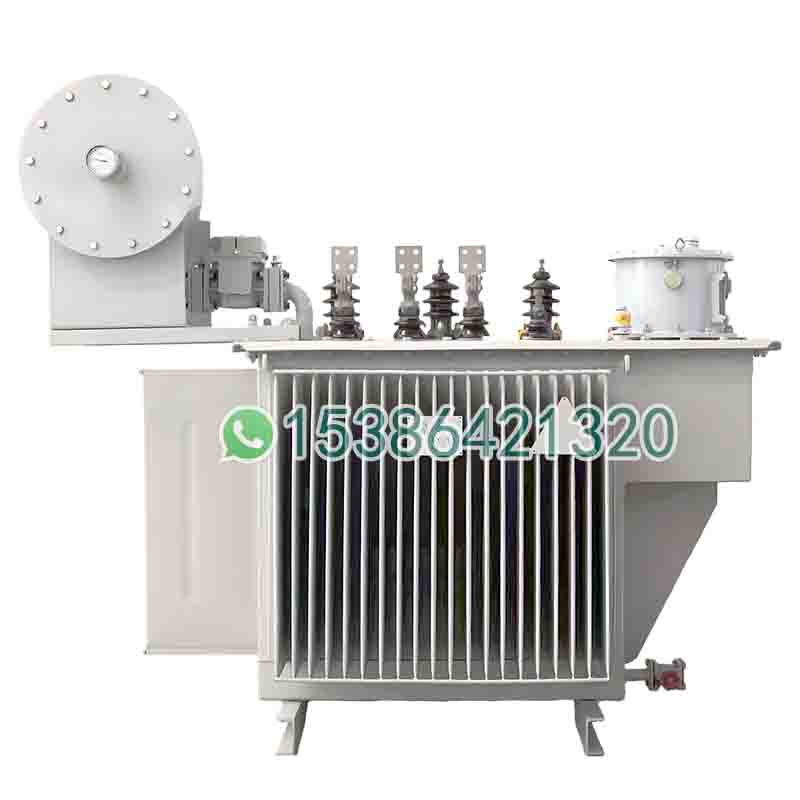

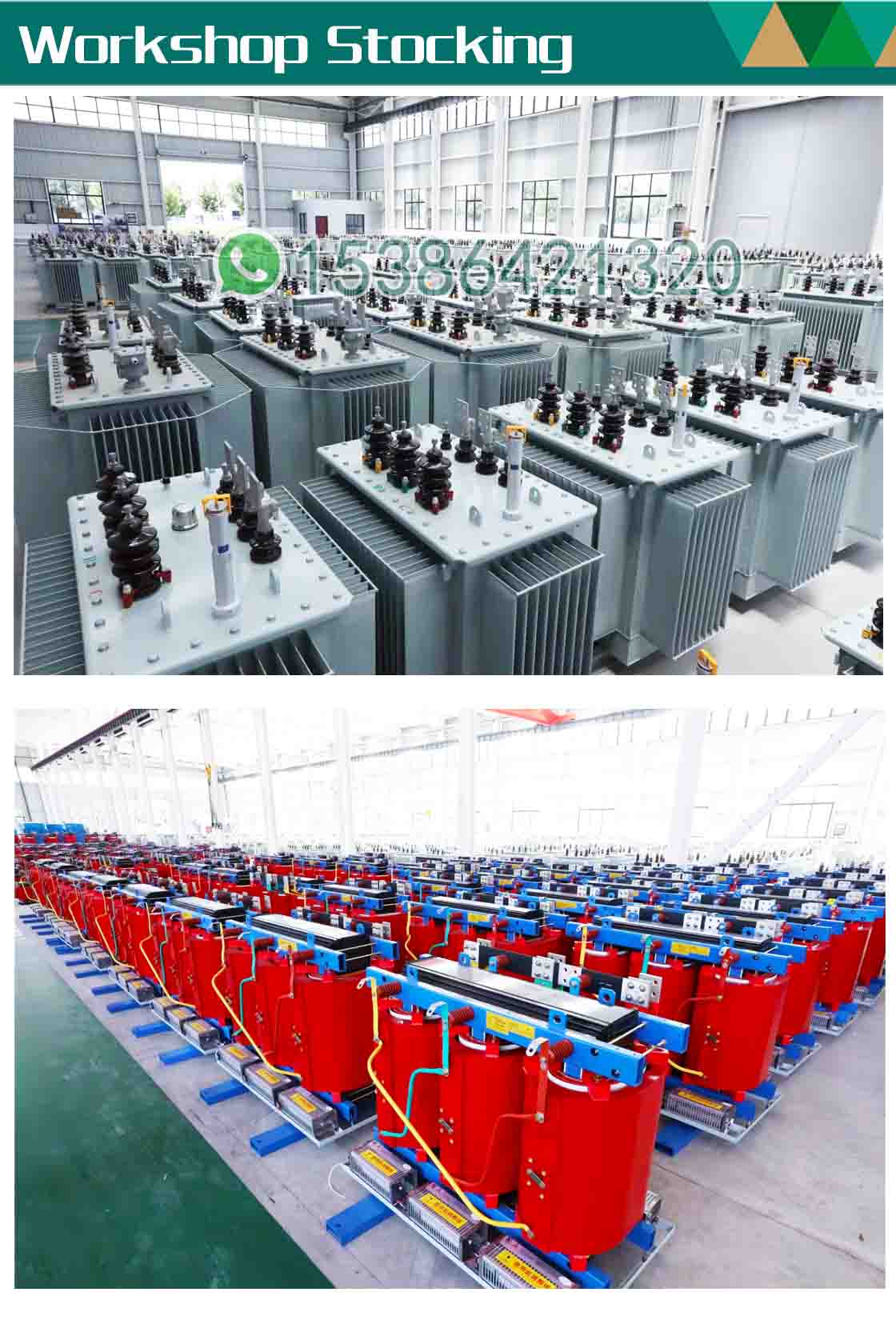

1、Performance: Oil immersed power transformers adopt full oil filled and sealed corrugated oil tank，which have good moisture resistance and heat dissipation performance.

Usage:Oil immersed distribution transformers can be installed indoors and outdoors, and are widely used in industrial and mining enterprises, such as industrial park， engineering construction ，thermal power plants, hydropower stations etc..

2、Rated voltage: The input voltage is 6KV, 10KV, 11KV, 13.8KV etc.. The output voltage is 400V 415V 420V 440V etc..

3、Rated capacity:25kVA 50kVA 80kVA 100kVA 125kVA 160kVA 200kVA 250kVA 315kVA 400kVA 500kVA 630kVA 800kVA 1000kVA 1250kVA 1600kVA 2000kVA 2000kVA 2500kVA 3150kVA 4000kVA etc..

4、Customization: medium voltage transformer or high voltage transformercan be manufactured according to the requirement of client.

Certification&Standards

1、Certification: ISO9001、CE、UL、CB、KEMA

2、Standards:

IEC60076- Part 1；Part 2；Part 3；Part 5；Part 10 Power transformers；

GB/T1094- Part 1；Part 2；Part 3；Part 5；Part 10 Power transformers；

GB/T 15164 Oil-immersed power transformer load guide

GB/T 6451 Three-phase oil-immersed power transformer technical parameters and requirements

Product characteristics

Type	Rated capacity （KVA）	Connection symbol	Voltage combination （KV）			No-load losses（W）	Load losses（W）	No- load current （%）	Short-circuit impedance （%）
Type	Rated capacity （KVA）	Connection symbol	H.V	Tapping range	L.V	No-load losses（W）	Load losses（W）	No- load current （%）	Short-circuit impedance （%）
S11	30kVA	Yyn0 or Dyn11	6 6.3 10 10.5 11	±5% or ±2×2.5%	0.4 0.415 0.42 0.44 ect	100	600	2.3	4.0
S11	50kVA					130	870	2.0
S11	63kVA					150	1040	1.9
S11	80kVA					180	1250	1.9
S11	100kVA					200	1500	1.8
S11	125kVA					240	1800	1.7
S11	160kVA					280	2200	1.6
S11	200kVA					340	2600	1.5
S11	250kVA					400	3050	1.4
S11	315kVA					480	3650	1.4
S11	400kVA					570	4300	1.3
S11	500kVA					680	5100	1.2
S11	630kVA					810	6200	1.1	4.5
S11	800kVA					980	7500	1.0
S11	1000kVA					1150	10300	1.0
S11	1250kVA					1360	12800	0.9
S11	1600kVA					1640	14500	0.8
S11	2000kVA					2280	17820	0.6	5.0
S11	2500kVA					2700	20700	0.6	5.0
