Description

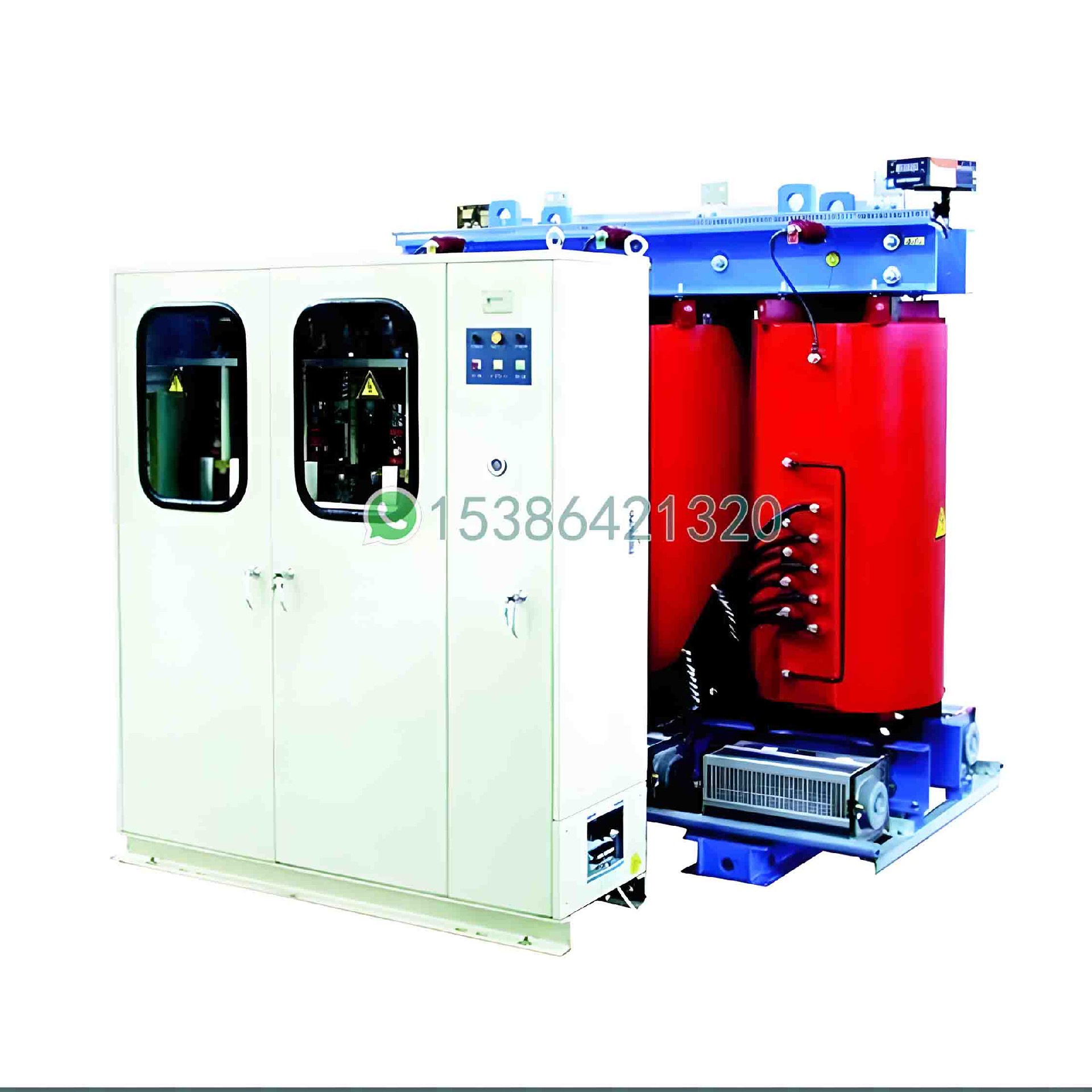

On load tap changer dry-type transformer is a type of transformer that adds an on load tap changer to the high voltage end of a regular transformer. This transformer can be in the case of continuous power, transformer output voltage adjustment! Large capacity, high voltage grade. Due to the wide range of voltage regulation and fast response speed, this product can stabilize the voltage required by users when the power network fluctuates frequently and greatly.

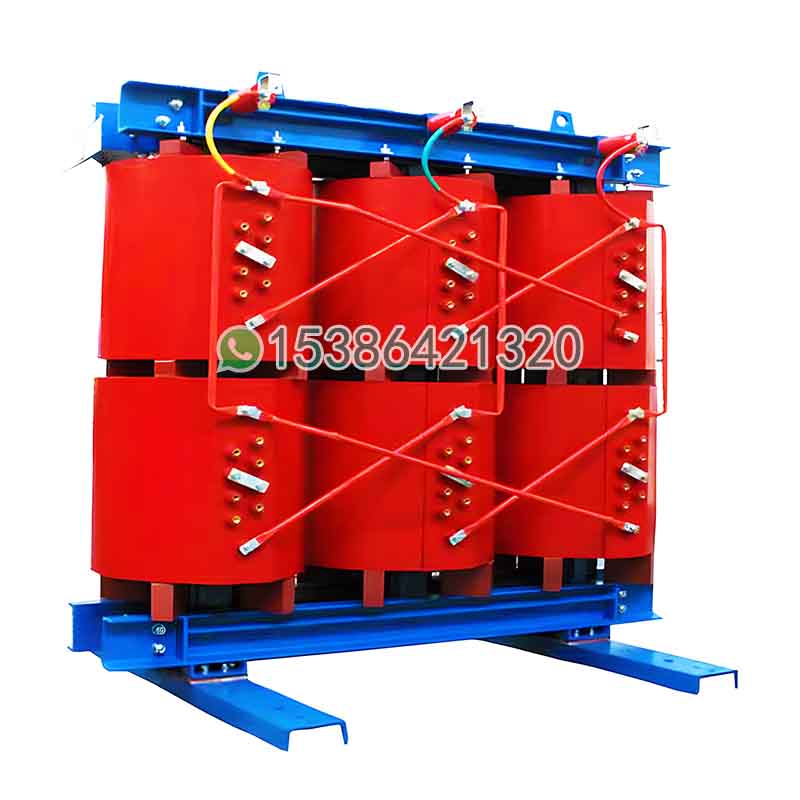

SC(B) series epoxy resin dry-type transformer is flame-retardant, fire-proof, explosion-proof, maintenance free, pollution-free, small in size, because of the winding is encapsulated, and can be directly installed in the load center. It is equipped with intelligent temperature controller, which has the functions of fault alarm, overtemperature alarm, overtemperature trip and black box. It is connected with the computer through RS485 serial interface and can be monitored centrally and control.

1、Usage: Dry type transformers are widely used in distribution rooms of residential buildings, large shopping malls, office buildings, and large factories etc..

2、Rated voltage: The input voltage is 15KV, 20KV, 22KV,25kV etc. The output voltage is 400V 415V 420V 440V etc.

3、Rated capacity:25kVA 50kVA 80kVA 100kVA 125kVA 160kVA 200kVA 250kVA 315kVA 400kVA 500kVA 630kVA 800kVA 1000kVA 1250kVA 1600kVA 2000kVA 2000kVA 2500kVA 3150kVA 4000kVA etc..
